INDUSTRIAL FANS (HPS):
Industrial fans are designed to operate under the most demanding conditions.  At Fan Equipment we employ the highest standards to manufacture the best quality, most rugged industrial fans on the market.

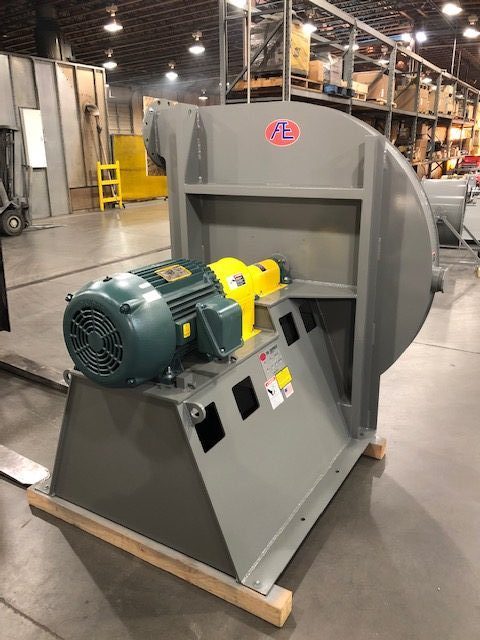

High Pressure – HPS & HPO Industrial Pressure Blowers

159 sizes: 14” thru 85” wheel diameters

Capacities: to 70,000 CFM

Pressures: to 80” W.G. (single stage), to 150” W.G. (2-stage)

Temperatures: to 700°F

Performance Type: low volume with high static pressure

Construction: Standard Duty (SD), Heavy Duty (HD), Extra Heavy Duty (XHD)

Typical Uses: Combustion Air, Injection-Type Conveyors, Drying, Cooling and Exhausting Systems, Induced/Forced Draft, Air Knives, Glass Production, Pneumatic Transport, Fluidizing Systems, Moisture Blow-Off and Chemical Processes

Type HPS and HPO fans are our premium Industrial Pressure Blower line achieving the highest Static Pressures we offer. Shrouded impellers (HPS) are available in seven specific speed designs. Unshrouded impellers (HPO) are available in three specific speed designs.

The impellers are all welded high-strength steel construction with gauges and features to ensure structural integrity and long life throughout the operating class. Hubs are taper-lock or clearance straight bore depending on the application. All fans are factory balanced to ISO 1940/1 Grade G2.5 (1/10 in/sec max velocity).

The aerodynamic volute shaped housings are constructed of robust gauges, are substantially braced, and have a continuously solid welded exterior scroll to the side seams. Solid welding inside and outside is available upon request.

Standard construction is for clean to mildly dirty air up to 200°F maximum temperature. Special options, materials, and construction features are available for other demanding process conditions such as elevated temperatures (up to 700°F), corrosive airstreams, spark-resistance, and low leakage applications. Optional materials of construction include A588, A656, A514, various Stainless Steels, Inconel, Hastelloy, AL6XN, Monel, Titanium, Aluminum, FRP (Fiberglass Reinforced Plastic) and more. Special abrasion resistant materials and design features to minimize wear are available for light to moderate material handling capabilities.

Standard finish is gray enamel. We offer numerous paint and coating options on both the airstream and exterior surfaces. Rubber lined housings interiors are available where practical.
